How To Install Diy Outdoor Patio Water Misting Cooling Fog System For Your Garden Backyard Pool

Perfect DIY spray cooling system

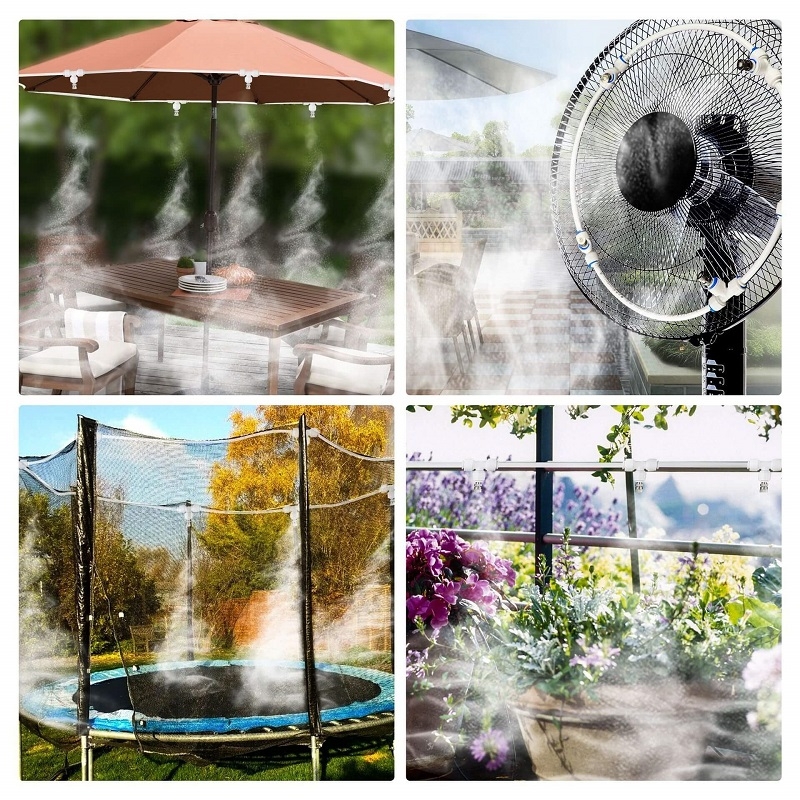

tee-Joint connectors can be used for a variety of purposes, you can apply a spray cooling system to a fan to form a circle, or you can use tee-Joint + end caps to make a T-shaped spray cooling system in your patio garden. Can form more applications, such as sun umbrella, trampoline, water park and so on.


There are many types of fogging systems on the market, but now we will cover the most basic misting system installation.

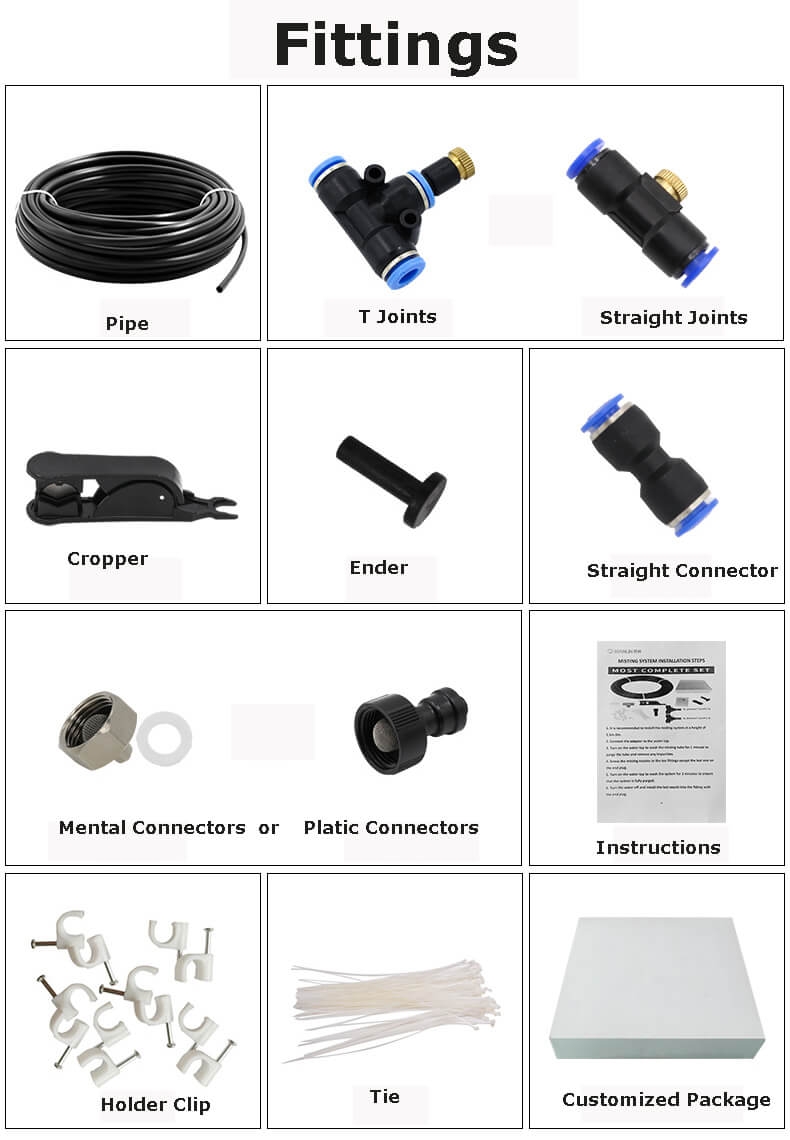

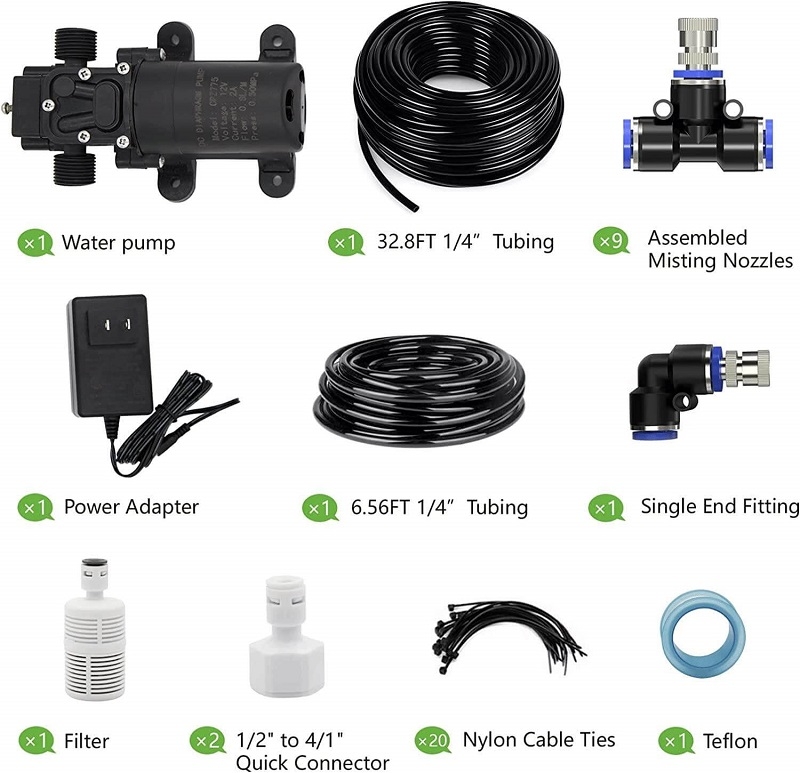

Installation preparation

1 x Micro Diaphragm Pump
1 x Power supply
1 x 12M misting system
2 x White female connector
16 x mist nozzles
1 x End plug
1 x Inlet filter head
40 Saddle clamps
40 cable ties
1Roll x Seal tape

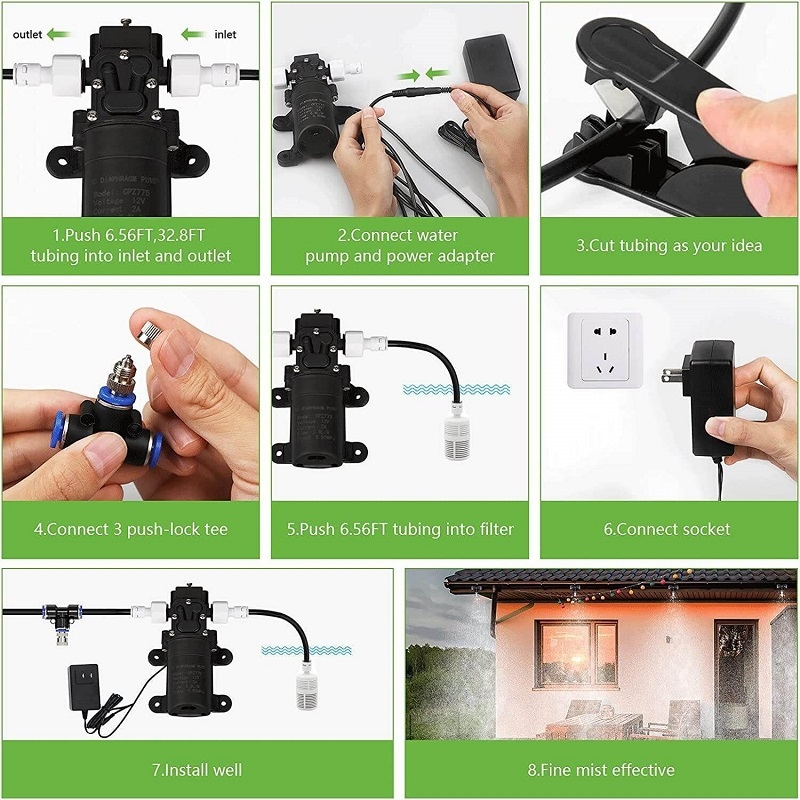

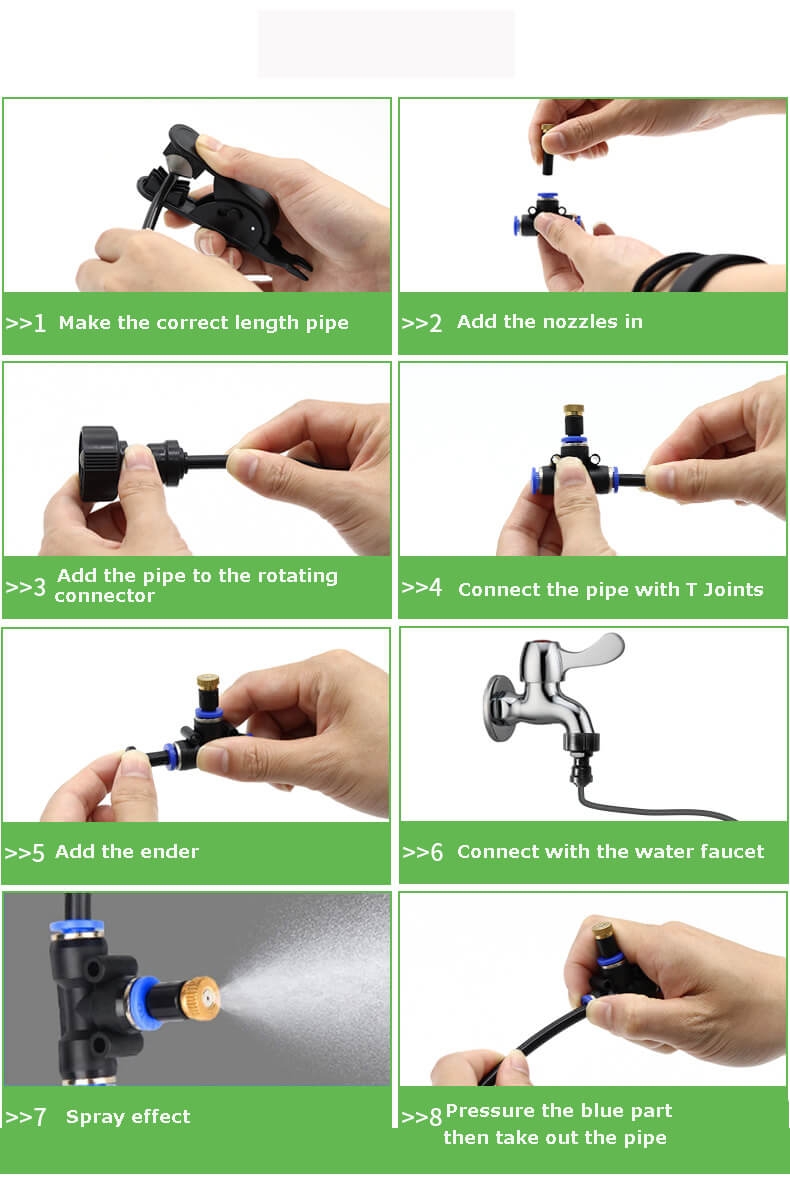

Installation procedure

1. Take 3M water pipe and water inlet strainer, and put all the strainer into the water tank.
2. Install the spray nozzle and nozzle connector end plug.
3. Take the black pump as an example, connect one side to the 3M water intake and the other side to the 12M spray system.
4. Connect the power adapter to the pump, turn on the power, run the system for one minute, and discharge the air in the pump.
5. Check the entire system carefully to ensure that there is no water leakage after the system is started.
6. Use the cable ties and clamps provided to secure the fogged lines.
7. Turn on the power, then enjoy the spray cooling system.
Note: Waterproof tape is recommended if water leaks.




Now, you can enjoy your happy time

If you have any questions about the installation of other things, please contact us
