What is the misting cooling fan and it application?

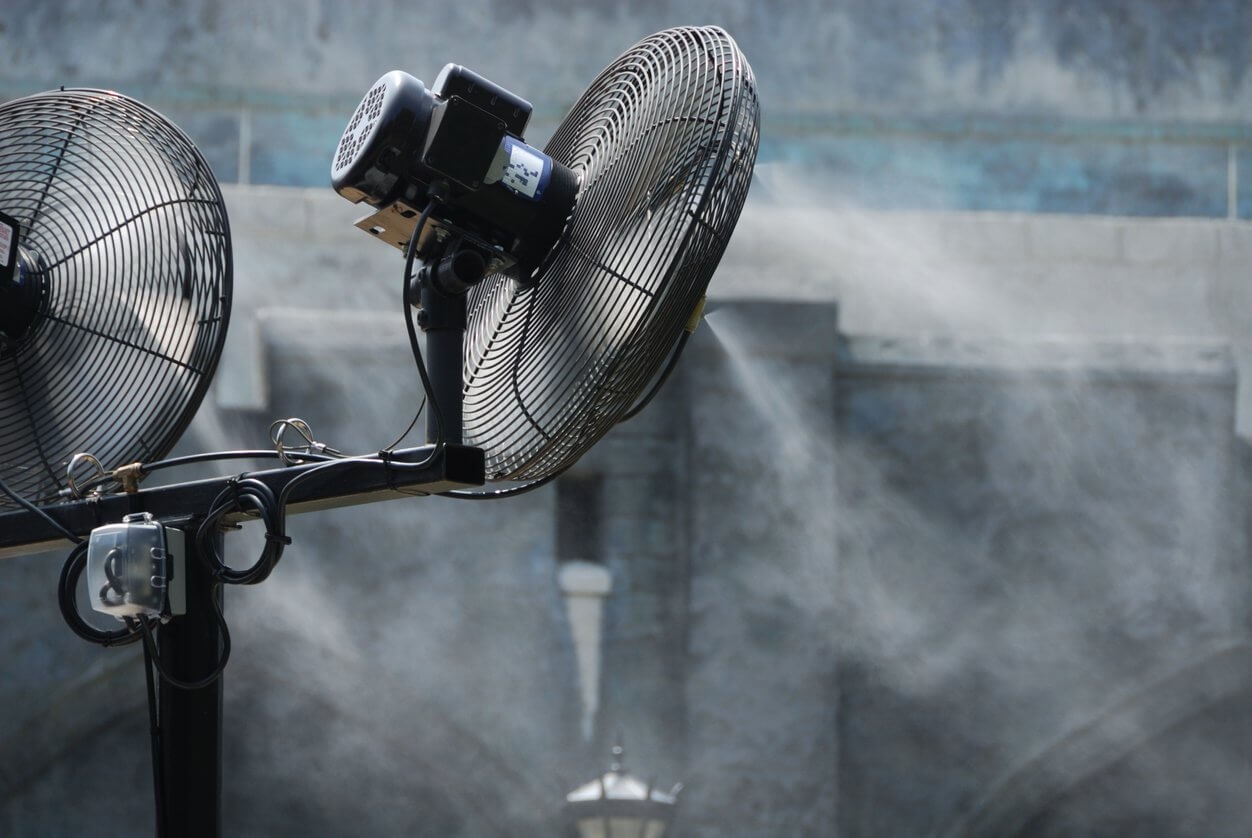

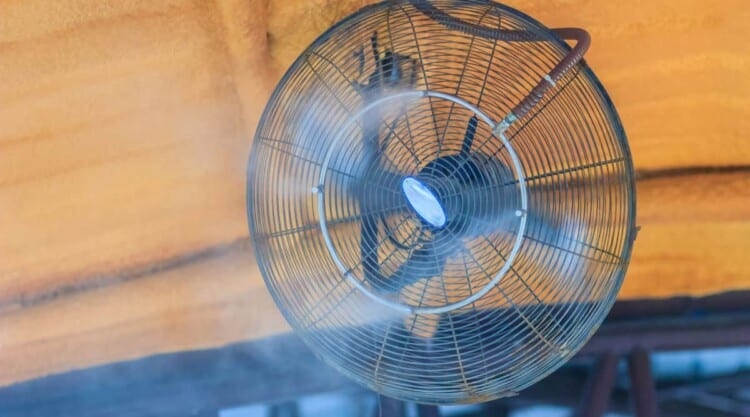

Misting fan is an outdoor cooling system or an open indoor cooling system. A misting fan that rapidly absorbs heat through the evaporation of water. The spray system can suppress dust and regulate the atmosphere. When water droplets evaporate, misting fan can cool the ambient temperature by 4 to 8 degrees. The surrounding area can reach 30-50 square meters. Keep the environment clean, cool and comfortable.


The working principle of misting fan

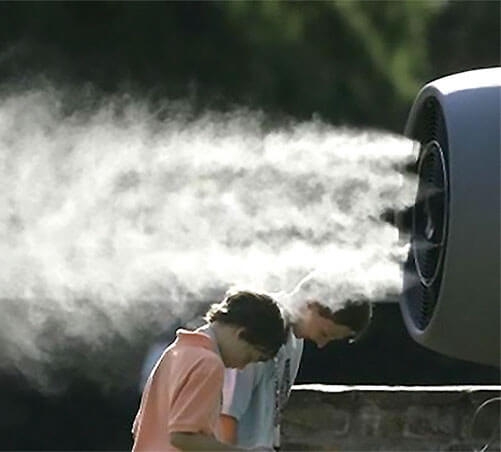

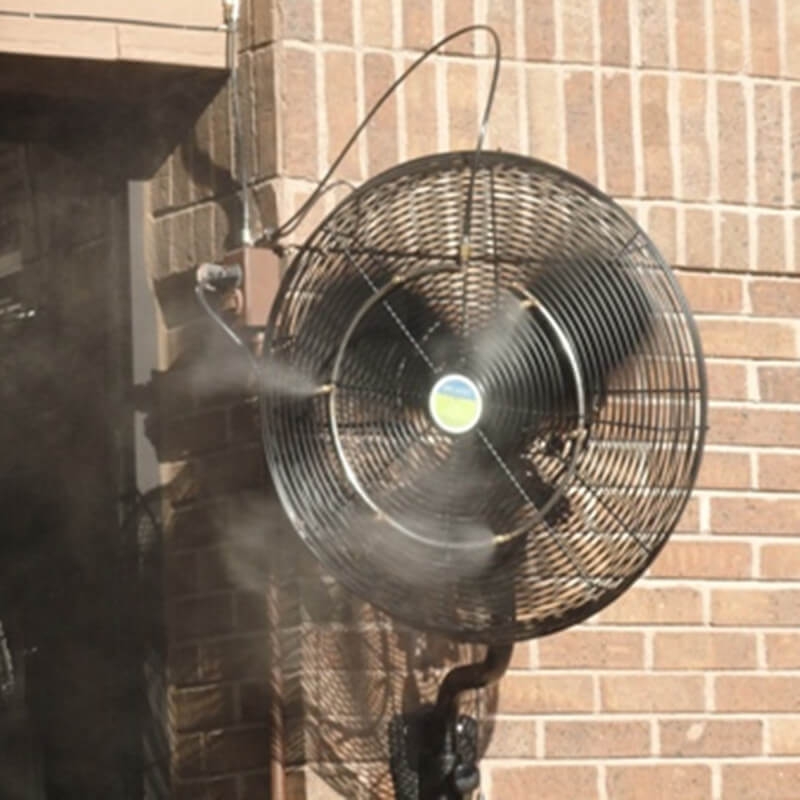

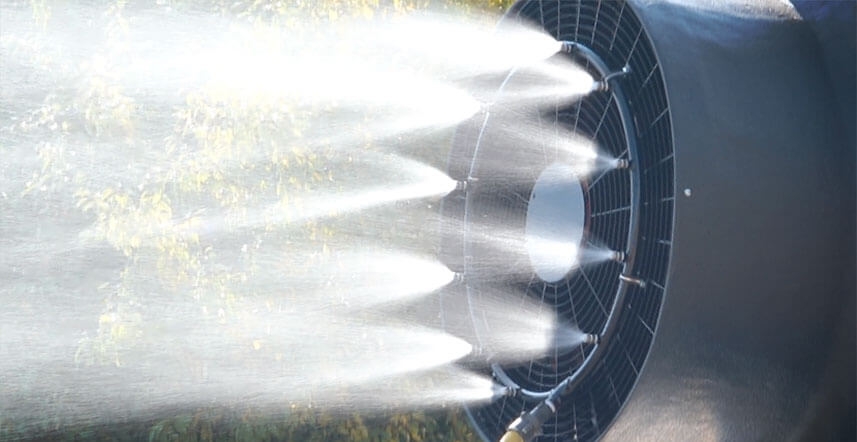

The working principle of the high-pressure nozzle misting fan is that the water has dozens of kilograms of pressure under the action of the high-pressure water pump, and the mist is generated through the high-pressure misting nozzle. The droplet diameter is less than 10 microns, so the surface area of evaporation is greatly increased. The mist is blown by a powerful fan, which greatly increases the wind speed on the liquid surface and accelerates the diffusion of gas molecules. This kind of fan uses a misting nozzle to generate a micro mist through high pressure, so it is called a high-pressure nozzle misting cooling fan.


Application of misting fan

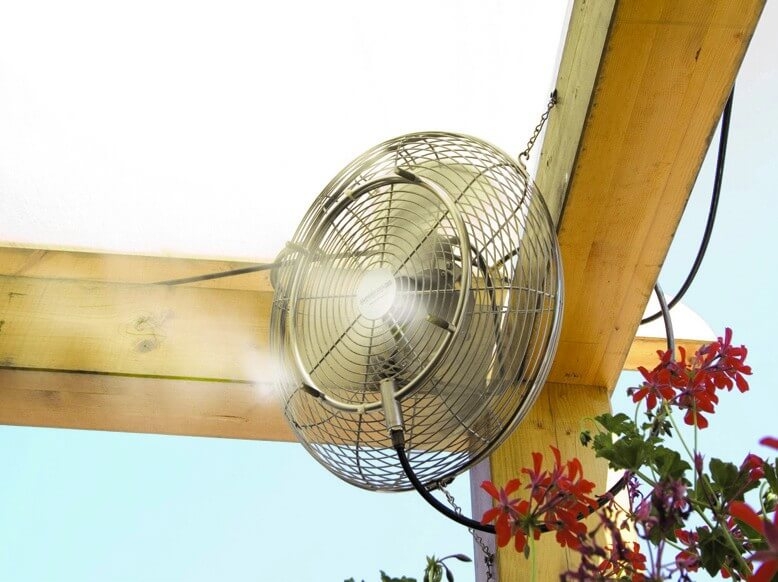

Cooling misting fans are suitable for outdoor restaurants, entertainment places, bus stations, train stations, waiting rooms, hotels, workplaces, loading docks, zoos, gardens, shopping malls, exhibitions, cinemas, fountains and so on. Make all kinds of misting. misting fan can also be used in agriculture, poultry farms, mushroom farms, circus arenas, aviaries, kennels and animal farms. Make the environment comfortable. To improve the growth, breeding and industry of all kinds of poultry.


1. Lower the temperature

Outdoor restaurants, entertainment venues, stadiums, sports fields, airports, bus stations, large gatherings, hotels, livestock farms of pigs, horses, cattle, sheep cooling.


2. Reduce dust

The removal of dust particles from the air is mainly used to control pollution in farms and mines.

3. Humidification

Used in textile factory, cotton wool warehouse, park, greenhouse, laboratory, flour mill and so on. Increase air humidity.


4. Agricultural

Used on family farms, mushroom farms, circus arenas, aviaries, kennels and feedlots to make the environment suitable for a variety of poultry.


5. Industrial

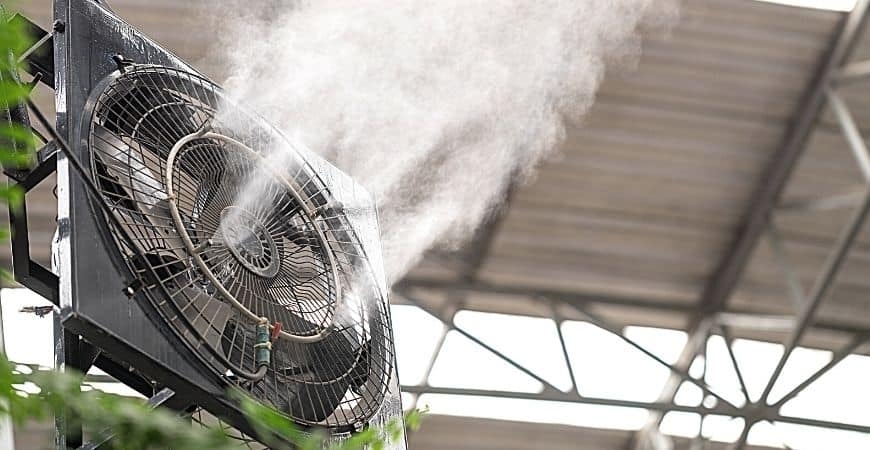

Hardware processing workshop, machine workshop, textile workshop, clothing workshop, printing and dyeing, shoemaking, plastics, injection molding, die casting, heat treatment, casting, glass products, spraying, electroplating, electronics, chemical industry, metallurgy, leather, toys, home appliance manufacturing, etc. Used to reduce temperature and dust, can also be used to eliminate static interference.


6. Special use places

Gardens, zoos, shopping malls, exhibitions, cinemas, mushroom rooms with flowers and plants, animal husbandry and other humidification and cooling. It can also be used for plant irrigation.


7. Special use method

A liquid disinfectant can be added to water to disinfect botanical gardens, greenhouses, livestock farms, zoos, and golf courses.

Product characteristics of misting fan

1. Good results

Large air volume, long misting distance, spray volume and spray Angle can be adjusted;


2. High quality

Double motor system, low temperature motor design, overload capacity is strong;


3. Easy to operate

90° shaking head adjustment, three speed adjustment, spray size can be adjusted.


4. Super safe

Waterproof design, good waterproof performance, safe use;


5. Super durable

Using CAD optimization design, beautiful appearance, surface powder, good rust resistance, durable;


6. It's super simple

Simple installation, convenient maintenance, no blockage;

Scope of application of misting fan


1.80 square meters or 300 square meters
2. Cooling effect of misting fan
3. The higher the ambient temperature is lowered by 3-8℃ or 4-10℃, the more obvious the temperature drop is.


Operating conditions of misting fan


1. Main voltage - If the main voltage fluctuates, it should be stable within 10% of the designed voltage.
2. Ambient temperature - The temperature should be between 0℃ and 50℃.
3. Ambient humidity - The maximum relative humidity is 85%


What are the components of the misting fan?

The misting fan is composed of fan motor, water pump, pillar, base, water tank and centrifugal misting disk. Installation method of misting fan:
★ Install the square rod: Place the bottom of the square rod on the base and tighten the screws from the top.
★ Install the motor: insert the connector of the motor into the connector of the square rod, straighten the direction of the motor, and then tighten the screw.
U install net, misting disc and blade: remove the motor head screws, install the motor fan cover alignment hole, tighten the screws, then install the fan on the motor shaft, tighten the blades of the gap on the motor shaft screw, install the misting plate in front of the mounting holes on the fan cover, fan cover before then tighten in the fan cover.
★ Installation of the motor wire source of the misting fan: the motor power cord (three holes) is inserted into the three-hole socket behind the square rod.
★ Install the water pipe of centrifugal misting fan: insert the 8MM water pipe into the misting plate, quickly connect and install the water pipe to make the misting plate motor natural. Insert the spray plate motor (four holes) into the appropriate socket, insert the 6MM and 8MM water pipes into the quick connector respectively, and cover the bellows.
★ Install water tank: Install four casters on the base, put the water tank on the cart, put the water pump in the water tank, plug in the outlet pipe. The water pump and outlet pipe pass through the hole of the tank and insert into the corresponding hole.
A misting fan is a cooling device that combines atomizing spray with a fan. It can keep the ambient temperature from 4 to 10 degrees Celsius. Therefore, its application is very wide, whether it is the daily life of residential cooling, restaurant cooling, outdoor cooling, or industrial plant cooling, equipment cooling, it has a good cooling performance.
