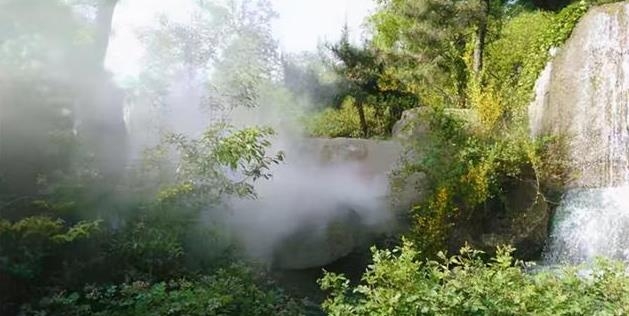

Garden courtyard automatic mist cooling system


1- Pipe

The first is the pipeline. The pipeline is an important component of the entire mist cooling system, which leads to all the pipelines from the water source and is arranged to every bush, grass and every place where the greening needs water.
Then in each mist cooling system pipe leads a branch, the branch may need to be connected to the solenoid valve, after receiving the solenoid valve branch road, and then connected to the mist, drip irrigation pipe, or to some micro-spray, drip stand, which are generally used in villas or small courtyards.

Finally, branch roads are connected according to different landforms. If it's all turf, it's recommended to do it on a side road. If it is a bush, it is recommended to do on a different bypass. Plants of the same type are treated equally, and different types of plants are controlled separately.

2-controller

The solenoid valve of each mist cooling system needs to be connected to the controller, which is the main core component of the spray.
The controller mainly controls the switches of each branch, and by adjusting their start time to close the time, it is equivalent to controlling the time they spray to control each road.

Each controller in the courtyard is equipped with a spray sensor. In rainy days, the spray sensor receives the spray signal and sends it to the controller, and the mist irrigation will be stopped on rainy days.

3- Suitable for small range of mist heads

I just sent a few common mist heads, we commonly used in the villa. I will also post some photos of drip arrows, microsprays, or drip heads to show you some of the components that are more suitable for use in small areas of plants (such as POTS).



4- Atomizing Spray

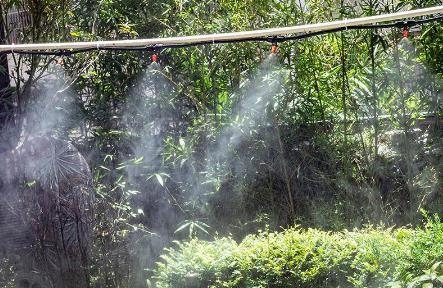

The spray tube has a hole every 30 cm or so, similar to the nozzle, the spray is uniform, and it penetrates little by little. The small black tube at the back, which will punch a hole, is equipped with a drip head, and then the back is divided into a four water separator, which is the nozzle.

The water volume of this spray tube is relatively fixed, mainly suitable for those families, villas with micro-spray and nozzle are not suitable for flower POTS, flower slots, or some small areas, and are electrically powered, directly inserted into the soil, mainly in the root, is the most water saving and the best effect of a spray method.

5- Micro misting spray

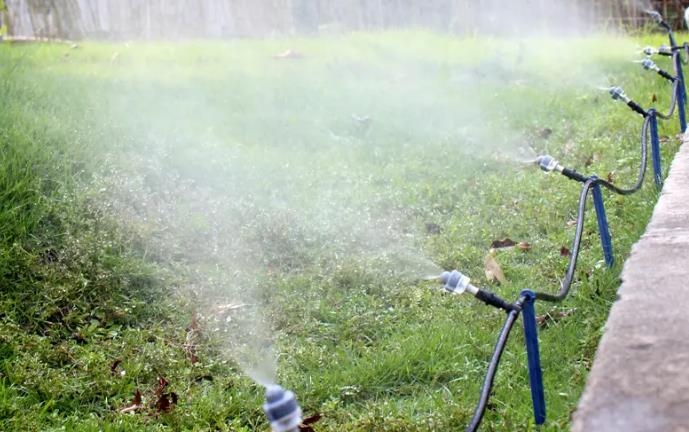

Because the spray radiation area is relatively large, it may be sprayed outside, causing a certain waste, so we can use micro-spray. The use of micro-spray is ground inserted micro-spray and hanging micro-spray, which is basically used in an area of less than one square meter, and the effect is better. Micro mist spraying is larger than drip irrigation, but much smaller than spray irrigation.
